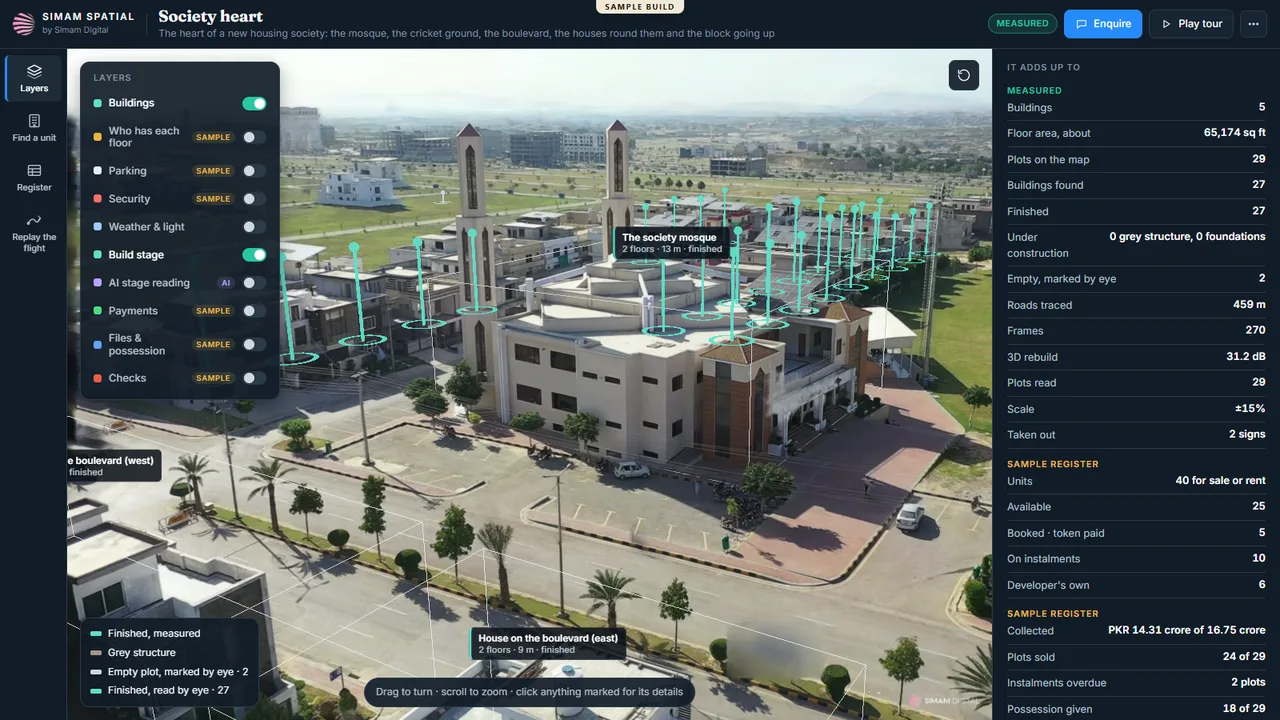

The heart of a new housing society in Pakistan, in 3D from two stock drone flights circling its mosque: the mosque, the floodlit cricket ground, the palm boulevard, the rows of houses behind and a six-storey block going up. Every building is measured from the 3D, every plot carries an AI reading of its build stage from its best drone frame (with that frame shown), and a sample register sits on top: owners, files, payments, instalments and possession, with checks where the records and the ground disagree. The block's flats and shops are on their floors, booked, on instalments or still for sale. Layers add parking against Friday prayers, security, a sample by-law, and a replay of the drone's own flight.
What we measured
| Measure | Result | Note |
|---|---|---|
| Footage | 270 frames | Stock footage; two flights circling the mosque |
| 3D rebuild | 31.2 dB | Checked against every 8th frame, which the 3D was not built from |
| Plots read | 29 | AI read each plot's stage from its best frame: 18 finished, 9 grey structure, 2 open |
| Scale | ±15% | From the cricket pitch, checked against the six-storey block |
What went wrong
- The first page for this capture was a plain pins-and-cards viewer, a step back from our earlier society demos. It was rebuilt on the shared site viewer so it keeps every society ability.
- Script lettering over the mosque entrance survived into the 3D; it was found close up and flattened in the 3D itself.
What happens next
- A developer's own plot files and payments on the same plots.
- Readings checked on the ground against the AI.
